SKY13522-644LF

High Isolation SPDT Switch

SKY13522-644LF Features

* Broadband frequency range: 0.7 to 3.0 GHz

* High isolation: 47 dB @ 2.2 GHz (typical)

* Single bit control

* Small QFN (8-pin,1.1 x 1.1 x 0.45 mm) package (MSL1, 260 °C per JEDEC J-STD-020) RF1 RF2 Logic and Supply RFC VDD V1 S3480 Skyworks Green™ products are compliant with al

SKY13522-644LF General Description

The SKY13522-644LF is a single-pole, double-throw (SPDT) switch used for single-ended switching in cellular applications. Using advanced switching technologies, the SKY13522-644LF maintains low insertion loss and high isolation for all switching paths. Depending on the logic voltage level applied to.

SKY13522-644LF Datasheet (741.70 KB)

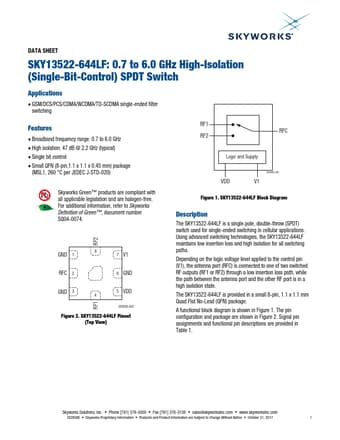

Preview of SKY13522-644LF PDF

Datasheet Details

Part number:

SKY13522-644LF

Manufacturer:

Skyworks Solutions

File Size:

741.70 KB

Description:

High isolation spdt switch.
DATA SHEET SKY13522-644LF: 0.7 to 3.0 GHz High Isolation (Single Bit Control) SPDT Switch Applications
* GSM/DCS/PCS/CDMA/WCDMA/TD-SCDMA single-e.
