SKY13530

0.7 to 2.7 GHz DP10T (SP6T/SP4T) MIPI Main Antenna Switch

SKY13530 Features

* Low band 7 insertion loss

* Integrated B17 3rd harmonic filter on low band antenna

* Excellent B17 3rd harmonic performance:

* 95 dBm

* Dual antenna configuration with integrated GSM low pass filters on TX ports

* Dual antenna ports can be connected externally to an LB/H

SKY13530 General Description

The SKY13530 is an SP6T and SP4T with MIPI control antenna switch that is LTE-A Release 10 and Release 11 compliant. Using advanced switching technologies, the SKY13530 maintains low insertion loss and high isolation for both transmit and receive switching paths. The high linearity performance and l.

SKY13530 Datasheet (165.59 KB)

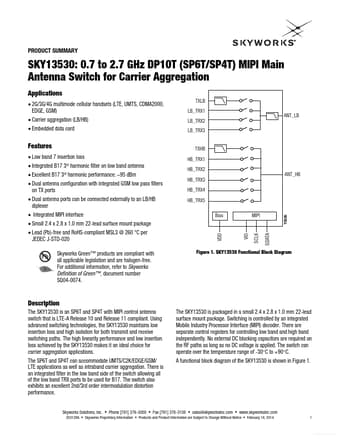

Preview of SKY13530 PDF

Datasheet Details

Part number:

SKY13530

Manufacturer:

Skyworks Solutions

File Size:

165.59 KB

Description:

0.7 to 2.7 ghz dp10t (sp6t/sp4t) mipi main antenna switch.
PRODUCT SUMMARY SKY13530: 0.7 to 2.7 GHz DP10T (SP6T/SP4T) MIPI Main Antenna Switch for Carrier Aggregation Applications
* 2G/3G/4G multimode cel.
