SKY13535-11

DP21T MIPI Main Antenna Switch

SKY13535-11 Features

* Low band 7 insertion loss

* Integrated B17 3rd harmonic filter on low band antenna

* Excellent B17 3rd harmonic performance:

* 95 dBm

* Dual antenna configuration with integrated GSM low pass filters on TX ports

* Dual antenna ports can be connected externally to an LB/H

SKY13535-11 General Description

The SKY13535-11 is an SP12T and SP9T with MIPI control antenna switch that is LTE-A Release 10 and Release 11 compliant. Using advanced switching technologies, the SKY13535-11 maintains low insertion loss and high isolation for both transmit and receive switching paths. The high linearity performanc.

SKY13535-11 Datasheet (99.68 KB)

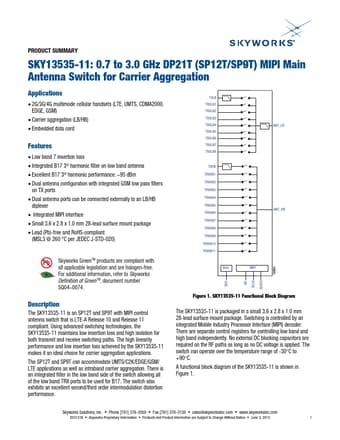

Preview of SKY13535-11 PDF

Datasheet Details

Part number:

SKY13535-11

Manufacturer:

Skyworks Solutions

File Size:

99.68 KB

Description:

Dp21t mipi main antenna switch.
PRODUCT SUMMARY SKY13535-11: 0.7 to 3.0 GHz DP21T (SP12T/SP9T) MIPI Main Antenna Switch for Carrier Aggregation Applications
* 2G/3G/4G multimode.
