SKY-60MH

Level 13 (LO Power +13dBm) 2500 to 6000 MHz

SKY-60MH Features

* low conversion loss, 6.2 dB typ.

* good L-R isolation, 28 dB typ.

* J-leads for strain relief SKY-60MH+ SKY-60MH CASE STYLE: BJ398 PRICE: $17.95 ea. QTY (1-9) Applications

* line of sight links

* fixed satellite + RoHS compliant in accordance with EU Dir

SKY-60MH Datasheet (289.33 KB)

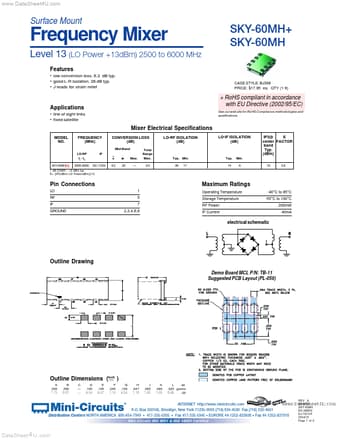

Preview of SKY-60MH PDF

Datasheet Details

Part number:

SKY-60MH

Manufacturer:

Mini-Circuits

File Size:

289.33 KB

Description:

Level 13 (lo power +13dbm) 2500 to 6000 mhz.
