SKY12212-478LF

100 W High Power Silicon PIN Diode SPDT Switch

SKY12212-478LF Features

* High power handling: 100 W CW, 480 W peak

* Low insertion loss: 0.4 dB typical

* High antenna to receive isolation: 44 dB @ 1.2 GHz typical

* Controlled with positive power supply

* Small, QFN (16-pin, 4 x 4 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-

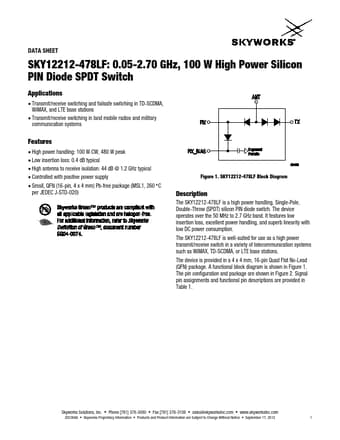

SKY12212-478LF Datasheet (1.08 MB)

Preview of SKY12212-478LF PDF

Datasheet Details

Part number:

SKY12212-478LF

Manufacturer:

Skyworks Solutions

File Size:

1.08 MB

Description:

100 w high power silicon pin diode spdt switch.
DATA SHEET SKY12212-478LF: 0.05-2.70 GHz, 100 W High Power Silicon PIN Diode SPDT Switch Applications

* Transmit/receive switching and failsa.
