SKY12143-315

Variable Attenuator

SKY12143-315 Features

* 23 dB attenuation range

* 1.5 dB insertion loss, 1.5:1 SWR www.DataSheet4U.com

* 12 V control voltage

* 43 dBm IP3

* Small footprint LGA package

* Designed for AMPS and GSM base stations

* Lead (Pb)-free and RoHS-compliant

* Connection Diagram RF In/Out 10 pF

SKY12143-315 General Description

The SKY12143-315 is a voltage controlled, variable attenuator from Skyworks series of HIP3™ components. It is specifically designed and specified for use as a wide dynamic range, lowdistortion attenuator for AMPS and GSM base station applications centered at 881.5 MHz and 942.5 MHz. The SKY12143-315.

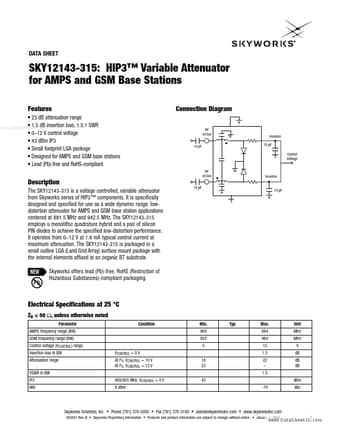

SKY12143-315 Datasheet (150.73 KB)

Preview of SKY12143-315 PDF

Datasheet Details

Part number:

SKY12143-315

Manufacturer:

Skyworks Solutions

File Size:

150.73 KB

Description:

Variable attenuator.
