SKY12145-315

Variable Attenuator

SKY12145-315 Features

* 23 dB attenuation range

* 1.5 dB insertion loss, 1.5:1 SWR www.DataSheet4U.com

* 12 V control voltage

* 43 dBm IP3

* Small footprint LGA package

* Designed for UMTS base stations

* Lead (Pb)-free and RoHS-compliant

* Connection Diagram RF In/Out 10 pF Vcontrol

SKY12145-315 General Description

The SKY12145-315 is a voltage controlled, variable attenuator from Skyworks series of HIP3™ components. It is specifically designed and specified for use as a wide dynamic range, lowdistortion attenuator for UMTS base station applications centered at 2140 MHz. The SKY12145-315 employs a monolithic q.

SKY12145-315 Datasheet (146.40 KB)

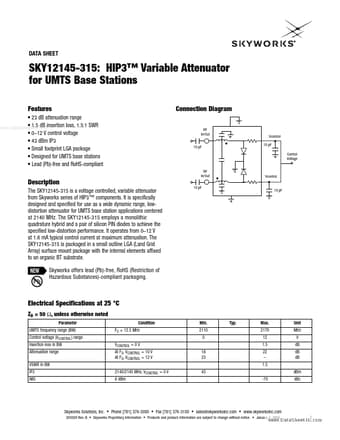

Preview of SKY12145-315 PDF

Datasheet Details

Part number:

SKY12145-315

Manufacturer:

Skyworks Solutions

File Size:

146.40 KB

Description:

Variable attenuator.
