SKY12146-321

GaAs IC 25 dB Voltage Variable Attenuator

SKY12146-321 Features

* Power control for 3.5 GHz fixed wireless applications G Minimum 25 dB attenuation www.DataSheet4U.com G Positive 0.2

* 1.2 V control voltage G QFN-12 3 x 3 mm package G Low cost G No external components needed G Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C per JEDEC J-STD-020 G

SKY12146-321 General Description

The SKY12146-321 is a GaAs IC PHEMT voltage variable attenuator that has been designed for WLAN applications. Operating from 2.7

*4 GHz, the SKY12146-321 is ideal for low-cost applications such as 3.5 GHz fixed wireless LAN power control applications. Ground is connected to paddle on bottom..

SKY12146-321 Datasheet (241.68 KB)

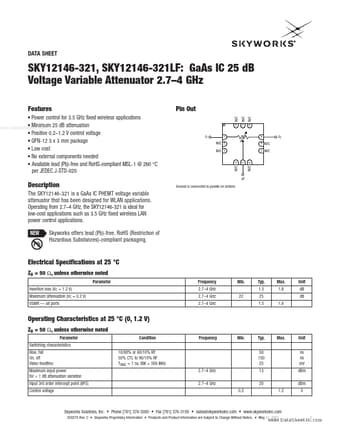

Preview of SKY12146-321 PDF

Datasheet Details

Part number:

SKY12146-321

Manufacturer:

Skyworks Solutions

File Size:

241.68 KB

Description:

Gaas ic 25 db voltage variable attenuator.
