SKY-60LH, SKY-60LH_Mini - Frequency Mixer

SKY-60LH Description

Surface Mount Frequency Mixer Level 10 (LO Power +10 dBm) 2500 to 6000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power IF Curr.

SKY-60LH Features

* low conversion loss, 6.2 dB typ.
* good L-R isolation, 28 dB typ.

SKY-60LH Applications

* Pin Connections LO RF IF GROUND 1 5 7 2,3,4,6,8
* line of sight links
* fixed satellite + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications. Electrical Specificatio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SKY-60LH, SKY-60LH_Mini. Please refer to the document for exact specifications by model.

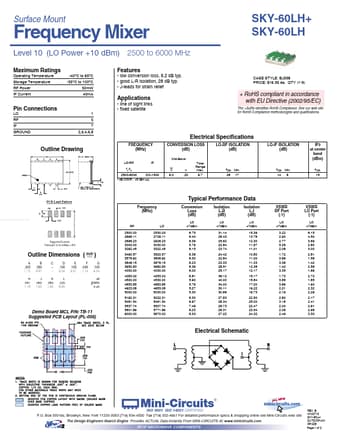

datasheet Preview Page 2
