SKY12230-12LF

1.7-2.3 GHz Variable Attenuator

SKY12230-12LF Features

* Broadband operating range: 1.7 to 2.3 GHz

* Attenuation range: >18.5 dB

* Low insertion loss: 1.2 dB

* High IIP3: +53 dBm typical

* Low current consumption:

SKY12230-12LF General Description

http://www.DataSheet4U.net/ The SKY12230-12LF is a current-controlled variable attenuator from Skyworks series of high 3rd Order Input Intercept Point (IIP3) components. The device has been designed to operate over the 1.7 to 2.3 GHz frequency band, but is specifically optimized for use as a wide d.

SKY12230-12LF Datasheet (672.19 KB)

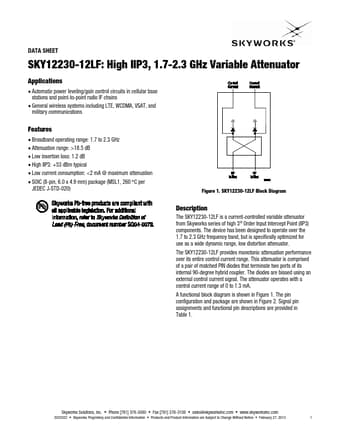

Preview of SKY12230-12LF PDF

Datasheet Details

Part number:

SKY12230-12LF

Manufacturer:

Skyworks Solutions

File Size:

672.19 KB

Description:

1.7-2.3 ghz variable attenuator.
DATA SHEET SKY12230-12LF: High IIP3, 1.7-2.3 GHz Variable Attenuator Applications

* Automatic power leveling/gain control circuits in cellula.
