SKY13526-485LF

SP6T LTE Transmit/Receive Switch

SKY13526-485LF Features

* Broadband frequency range: 0.4 to 2.7 GHz

* Low insertion loss

* High isolation and linearity

* External MIPI select pin

* Six linear TRX ports with isolation greater than 20 dB @ 2.7 GHz

* Small QFN (14-pin, 2 x 2 mm) package (MSL1, 260 C per JEDEC J-STD-020) VDD VIO SDA

SKY13526-485LF General Description

The SKY13526-485LF is a single-pole, six-throw (SP6T) antenna switch with a Mobile Industry Processor Interface (MIPI). Using advanced switching technologies, the SKY13526-485LF maintains low insertion loss and high isolation for both transmit and receive switching paths. The high linearity performa.

SKY13526-485LF Datasheet (337.03 KB)

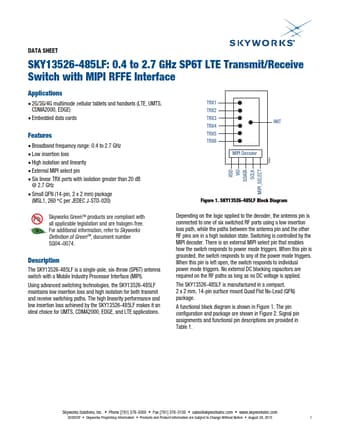

Preview of SKY13526-485LF PDF

Datasheet Details

Part number:

SKY13526-485LF

Manufacturer:

Skyworks Solutions

File Size:

337.03 KB

Description:

Sp6t lte transmit/receive switch.
DATA SHEET SKY13526-485LF: 0.4 to 2.7 GHz SP6T LTE Transmit/Receive Switch with MIPI RFFE Interface Applications
* 2G/3G/4G multimode cellular ta.
