SKY13523-639LF

High-Isolation SP3T Switch

SKY13523-639LF Features

* Broadband frequency range: 0.7 to 3.0 GHz

* High isolation: >45 dB @ 2.0 GHz

* Low insertion loss: 0.5 dB typical @ 2.0 GHz

* Small QFN (14-pin, 1.6 x 1.6 mm) package (MSL1, 260 C per JEDEC J-STD-020) RF1 RF2 RFC RF3 Logic and Supply Skyworks GreenTM products are compliant with

SKY13523-639LF General Description

The SKY13523-639LF is a single pole, triple-throw (SP3T) switch used for single-ended filter switching in cellular applications. The SKY13523-639LF maintains low insertion loss and high isolation for all switching paths. Depending on the logic voltage level applied to the control pins (V1 and V2), t.

SKY13523-639LF Datasheet (276.94 KB)

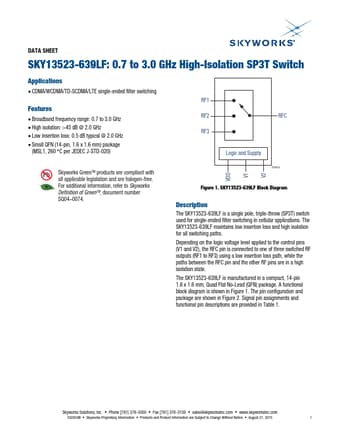

Preview of SKY13523-639LF PDF

Datasheet Details

Part number:

SKY13523-639LF

Manufacturer:

Skyworks Solutions

File Size:

276.94 KB

Description:

High-isolation sp3t switch.
