SKY13587-378LF

GaAs SPDT Switch

SKY13587-378LF Features

* Positive voltage control (0 and 1.8 V to 0 and 5.0 V)

* Broadband frequency range: 20 MHz to 6.0 GHz

* Very low insertion loss: 0.35 dB typical @ 2.45 GHz

* High isolation: 24 dB typical @ 2.45 GHz

* Excellent linearity performance: IP0.5dB = +30 dBm

* Operating temperature

SKY13587-378LF General Description

The SKY13587-378LF is a pHEMT GaAs FET I/C switch. The switch can be used in transmit/receive applications by connecting the RF common port (INPUT, pin 5) to either the OUTPUT1 or OUTPUT2 port (pin 1 or 3, respectively) using a low-loss path (i.e., a positive voltage applied to either VCTL1 or VCTL2.

SKY13587-378LF Datasheet (842.49 KB)

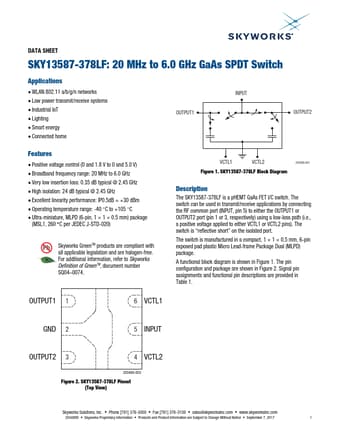

Preview of SKY13587-378LF PDF

Datasheet Details

Part number:

SKY13587-378LF

Manufacturer:

Skyworks Solutions

File Size:

842.49 KB

Description:

Gaas spdt switch.
DATA SHEET SKY13587-378LF: 20 MHz to 6.0 GHz GaAs SPDT Switch Applications
* WLAN 802.11 a/b/g/n networks
* Low power transmit/receive system.
