SKY13588-460LF

SP3T Switch

SKY13588-460LF Features

* Broadband frequency range: 0.1 to 6.0 GHz

* Low insertion loss: 0.45 dB @ 2.5 GHz

* High isolation: 30 dB up to 2.5 GHz

* No external DC blocking capacitors required

* Positive low voltage control: VCTL = 1.65 to 3.00 V, VDD = 2.5 to 4.8 V

* Operating temperature range: -40

SKY13588-460LF General Description

The SKY13588-460LF is a CMOS silicon-on-insulator (SOI), single-pole, triple-throw (SP3T) switch. The high-linearity performance and low insertion loss makes the device an ideal choice for WCDMA handset and data card applications. The SKY13588-460LF SP3T switch is provided in a compact Quad Flat No-.

SKY13588-460LF Datasheet (732.21 KB)

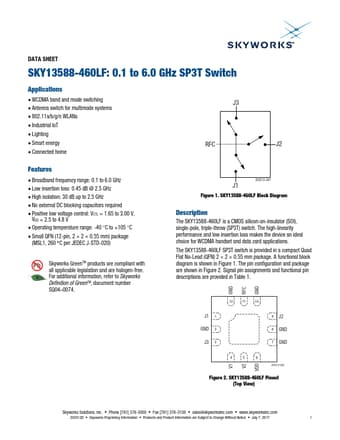

Preview of SKY13588-460LF PDF

Datasheet Details

Part number:

SKY13588-460LF

Manufacturer:

Skyworks Solutions

File Size:

732.21 KB

Description:

Sp3t switch.
DATA SHEET SKY13588-460LF: 0.1 to 6.0 GHz SP3T Switch Applications
* WCDMA band and mode switching
* Antenna switch for multimode systems
