SKY73020 - High Gain and Linearity Diversity Downconversion Mixer

Datasheet Summary

Description

The SKY73020 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers.

Low-loss RF baluns have also been included to reduce design complications and lower system cost.

Features

an input IP3 of 27.0 dBm and a Noise Figure (NF) of 10.2 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 65 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations. The SKY73020 is manufactured using a robust silicon BiCMOS process and has been designed for optimum long-term reliability. The SKY73020 diversity downconversion mixer is provided in a compact, 3.

Datasheet Details

Part number	SKY73020
Manufacturer	Skyworks Solutions
File Size	569.63 KB
Description	High Gain and Linearity Diversity Downconversion Mixer
Datasheet	SKY73020 Datasheet
Additional preview pages of the SKY73020 datasheet.

📁 Similar Datasheet

SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)

SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)

SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)

SKY73120-11 - Voltage Controlled Oscillator (Skyworks)

Full PDF Text Transcription

Click to expand full text

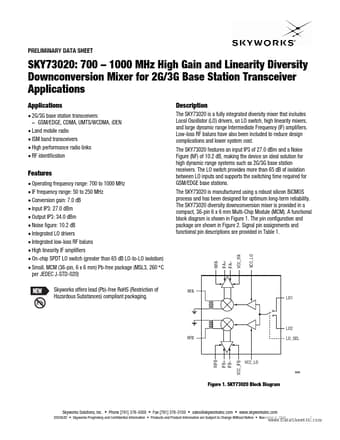

www.DataSheet4U.com PRELIMINARY DATA SHEET SKY73020: 700 – 1000 MHz High Gain and Linearity Diversity Downconversion Mixer for 2G/3G Base Station Transceiver Applications Applications • 2G/3G base station transceivers: − GSM/EDGE, CDMA, UMTS/WCDMA, iDEN • Land mobile radio • ISM band transceivers • High performance radio links • RF identification Description The SKY73020 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers. Low-loss RF baluns have also been included to reduce design complications and lower system cost. The SKY73020 features an input IP3 of 27.0 dBm and a Noise Figure (NF) of 10.
