SKY74038

2.6 GHz/800 MHz Dual Fractional-N/lnteger-N Frequency Synthesizer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Skyworks Solutions Inc SKY74038-13 IC MIXER DOWNCONVERSION DigiKey 0 0
$0

SKY74038 Datasheet (156.53 KB)

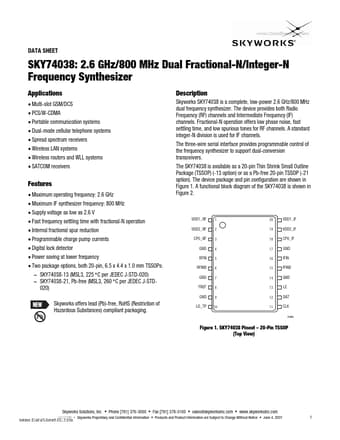

Preview of SKY74038 PDF Datasheet

Datasheet Details

Part number:

SKY74038

Manufacturer:

Skyworks Solutions

File Size:

156.53 KB

Description:

2.6 ghz/800 mhz dual fractional-n/lnteger-n frequency synthesizer

SKY74038 Features

* Maximum operating frequency: 2.6 GHz

* Maximum IF synthesizer frequency: 800 MHz

* Supply voltage as low as 2.6 V

* Fast frequency settling time with fractional-N operation

* Internal fractional spur reduction

* Programmable charge pump currents

SKY74038 General Description

Skyworks SKY74038 is a complete, low-power 2.6 GHz/800 MHz dual frequency synthesizer. The device provides both Radio Frequency (RF) channels and Intermediate Frequency (IF) channels. Fractional-N operation offers low phase noise, fast settling time, and low spurious tones for RF channels. A standar.
