SKY73032-11 Datasheet PDF - Skyworks High Gain and Linearity Single Downconversion Mixer Specs

SKY73032-11 - High Gain and Linearity Single Downconversion Mixer

Datasheet Summary

Description

The SKY73032-11 is a fully integrated single mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers.

Low loss RF baluns have also been included to reduce design complications and lower system cost.

Features

x Operating frequency range: 700 to 1000 MHz x IF frequency range: 40 to 300 MHz x Conversion gain: 9.5 dB x Input IP3: +27.0 dBm x Output IP3: +36.5 dBm x Noise figure: 8.3 dB x Integrated LO drivers x Integrated low loss RF baluns x High linearity IF amplifiers x On-chip SPDT LO switch (greater than 40 dB LO-to-LO isolation) x Small, MCM (20-pin, 5 x 5 mm) Pb-free package (MSL3, 260 qC per JEDEC J-STD-020) RXIF IFA+ IFA.
VCC_IFRF.

Datasheet Details

Part number	SKY73032-11
Manufacturer	Skyworks
File Size	218.64 KB
Description	High Gain and Linearity Single Downconversion Mixer
Datasheet	SKY73032-11 Datasheet
Additional preview pages of the SKY73032-11 datasheet.

📁 Similar Datasheet

SKY73032 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

SKY73033 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

SKY73035 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

SKY73001 - Direct Conversion Mixer (Skyworks Solutions)

SKY73009 - Direct Quadrature Demodulator (Skyworks Solutions)

SKY73010 - Direct Quadrature Modulator (Skyworks Solutions)

SKY73012 - Direct Quadrature Demodulator (Skyworks Solutions)

SKY73020 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

SKY73021 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

SKY73023 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)

Full PDF Text Transcription

Click to expand full text

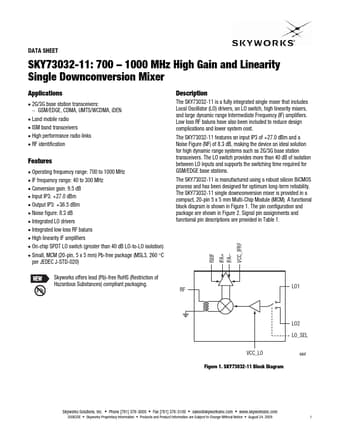

DATA SHEET SKY73032-11: 700 – 1000 MHz High Gain and Linearity Single Downconversion Mixer Applications x 2G/3G base station transceivers: GSM/EDGE, CDMA, UMTS/WCDMA, iDEN x Land mobile radio x ISM band transceivers x High performance radio links x RF identification Features x Operating frequency range: 700 to 1000 MHz x IF frequency range: 40 to 300 MHz x Conversion gain: 9.5 dB x Input IP3: +27.0 dBm x Output IP3: +36.5 dBm x Noise figure: 8.
