SKY73033-11 - High Gain and Linearity Single Downconversion Mixer

Datasheet Summary

Description

The SKY73033-11 is a fully integrated single mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers.

Low loss RF baluns have also been included to reduce design complications and lower system cost.

Features

  • x Operating frequency range: 1700 to 2200 MHz x IF frequency range: 40 to 300 MHz x Conversion gain: 8.9 dB x Input IP3: 24.0 dBm x Output IP3: 32.9 dBm x Noise figure: 9.4 dB x Integrated LO drivers x Integrated low loss RF baluns x High linearity IF amplifiers x On-chip SPDT LO switch (greater than 40 dB LO-to-LO isolation) x Small, MCM (20-pin, 5 x 5 mm) package (MSL3, 260 qC per JEDEC J-STD-020) RXIF IFA+ IFA.
  • VCC_IFRF.

📥 Download Datasheet

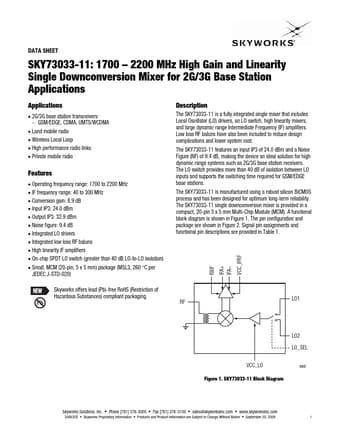

Datasheet preview – SKY73033-11

Datasheet Details

Part number SKY73033-11
Manufacturer Skyworks
File Size 224.84 KB
Description High Gain and Linearity Single Downconversion Mixer
Datasheet download datasheet SKY73033-11 Datasheet
Additional preview pages of the SKY73033-11 datasheet.

📁 Similar Datasheet

  • SKY73033 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
  • SKY73032 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
  • SKY73035 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
  • SKY73001 - Direct Conversion Mixer (Skyworks Solutions)
  • SKY73009 - Direct Quadrature Demodulator (Skyworks Solutions)
  • SKY73010 - Direct Quadrature Modulator (Skyworks Solutions)
  • SKY73012 - Direct Quadrature Demodulator (Skyworks Solutions)
  • SKY73020 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
  • SKY73021 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
  • SKY73023 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks Solutions)
Other Datasheets by Skyworks
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator
  • SKY73103-11 - High Performance VCO/Synthesizer
  • SKY73112-11 - High Performance VCO/Synthesizer

Full PDF Text Transcription

Click to expand full text
DATA SHEET SKY73033-11: 1700 – 2200 MHz High Gain and Linearity Single Downconversion Mixer for 2G/3G Base Station Applications Applications x 2G/3G base station transceivers:  GSM/EDGE, CDMA, UMTS/WCDMA x Land mobile radio x Wireless Local Loop x High performance radio links x Private mobile radio Features x Operating frequency range: 1700 to 2200 MHz x IF frequency range: 40 to 300 MHz x Conversion gain: 8.9 dB x Input IP3: 24.0 dBm x Output IP3: 32.9 dBm x Noise figure: 9.
