AAT3221 - 150 mA Nanopower LDO Linear Regulator

AAT3221 Description

DATA SHEET AAT3221/AAT3222: 150 mA NanopowerTM LDO Linear Regulator Applications * Cellular phones * Digital cameras * Handhe.
The AAT3221 and AAT3222 NanoPower™ Low Drop Out (LDO) linear regulators are ideal for portable applications where extended battery life is critical.

AAT3221 Features

* Quiescent current: 1.1 µA
* Low dropout: 200 mV (typical)
* Guaranteed output: 150 mA
* High accuracy: ±2%
* Current limit protection
* Over-temperature protection
* Extremely low power shutdown mode
* Low temperature coefficient

AAT3221 Applications

* Cellular phones
* Digital cameras
* Handheld electronics
* Notebook computers
* PDAs
* Portable communication devices

📥 Download Datasheet

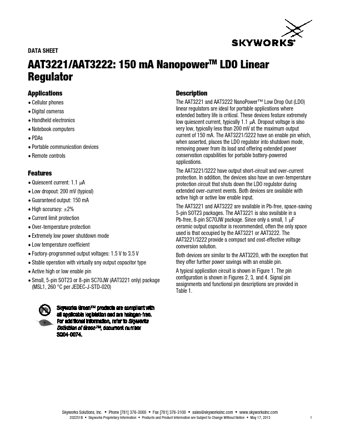

Preview of AAT3221 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT3221
Manufacturer
Skyworks
File Size
1.02 MB
Datasheet
AAT3221-Skyworks.pdf
Description
150 mA Nanopower LDO Linear Regulator
