AAT3216 Datasheet - Advanced Analogic Technologies

AAT3216 - 150mA MicroPower LDO

The AAT3216 MicroPower low dropout (LDO) linear regulator is ideally suited for portable applications where low noise, extended battery life, and small size are critical.

The AAT3216 has been specifically designed for low output noise performance, fast transient response, and high power supply rejec

AAT3216 Features

* include low quiescent current, typically 70μA, and low dropout voltage, typically less than 200mV at full output current. The device is output shortcircuit protected and has a thermal shutdown circuit for additional protection under extreme conditions. The AAT3216 also features a low-power shutdown

AAT3216-AdvancedAnalogicTechnologies.pdf

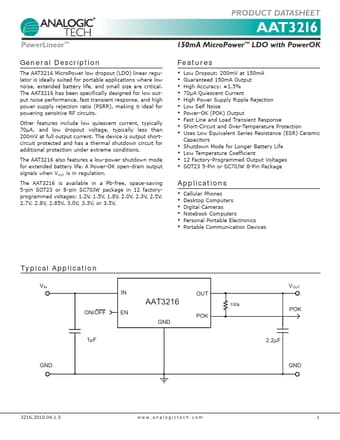

Preview of AAT3216 PDF
AAT3216 Datasheet Preview Page 2 AAT3216 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT3216

Manufacturer:

Advanced Analogic Technologies

File Size:

532.08 KB

Description:

150ma micropower ldo.
