AAT3258 Datasheet - AAT

AAT3258 - LDO Linear Regulator

The AAT3258 combines a high performance, low noise, 300mA low dropout (LDO) linear regulator with a microprocessor reset monitor.

The 300mA output capability of the LDO regulator makes this device ideal for use with microprocessors and DSP cores in portable products.

The microprocessor reset monitor

AAT3258 Features

* very low quiescent current, typically less than 71µA. The LDO regulator has low dropout voltage, typically 400mV at the full output current level, making it ideal for portable applications where extended battery life is critical. The AAT3258 LDO regulator section has complete over-current/short-circ

AAT3258_AAT.pdf

Preview of AAT3258 PDF

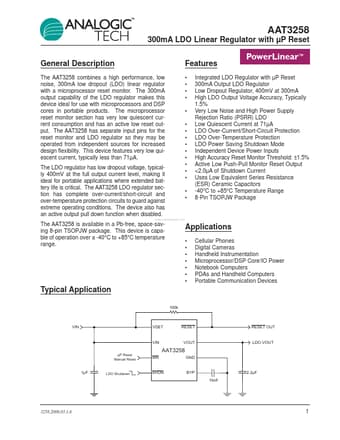

AAT3258 Datasheet Preview Page 2 AAT3258 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT3258

Manufacturer:

AAT

File Size:

288.46 KB

Description:

Ldo linear regulator.
