AAT3222 Datasheet, Regulator, Skyworks

AAT3222 Features

  • Regulator
  • Quiescent current: 1.1 µA
  • Low dropout: 200 mV (typical)
  • Guaranteed output: 150 mA
  • High accuracy: ±2%
  • Current limit protection

PDF File Details

Part number:

AAT3222

Manufacturer:

Skyworks

File Size:

1.02MB

Download:

📄 Datasheet

Description:

150 ma nanopower ldo linear regulator. The AAT3221 and AAT3222 NanoPower™ Low Drop Out (LDO) linear regulators are ideal for portable applications where extended battery li

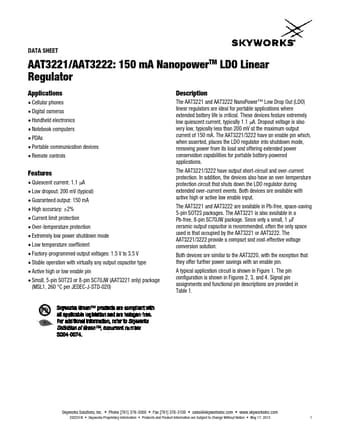

Datasheet Preview: AAT3222 📥 Download PDF (1.02MB)
Page 2 of AAT3222 Page 3 of AAT3222

AAT3222 Application

  • Applications
  • Cellular phones
  • Digital cameras
  • Handheld electronics
  • Notebook computers
  • PDAs
