SE2431L - 2.4 GHz Front-End Module

SE2431L Description

DATA SHEET SE2431L: 2.4 GHz Front-End Module CPS CTX CSD ANT_SEL Applications * Smart meters * In-home appliances * Smart thermostats Fe.
The SE2431L is a high-performance, fully integrated RF front-end module (FEM), suitable for Zigbee, Bluetooth Low Energy, and Bluetooth 1.

SE2431L Features

* Integrated:
* PA with up to +24 dBm output power
* LNA with programmable bypass
* Antenna switching with Tx and Rx diversity function
* Suitable for Zigbee®, Bluetooth® Low Energy, and Bluetooth 1.0
* Typical low NF: 2 dB
* Operating temperature range:

SE2431L Applications

* Smart meters
* In-home appliances

📥 Download Datasheet

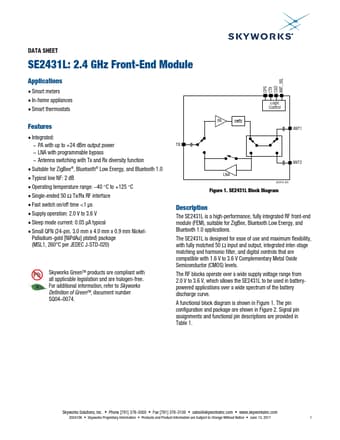

Preview of SE2431L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SE2431L
Manufacturer
Skyworks
File Size
547.17 KB
Datasheet
SE2431L-Skyworks.pdf
Description
2.4 GHz Front-End Module
