SE2442L Datasheet, Front-end Module, Skyworks

902 to 928 mhz high-power rf front-end module

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Skyworks Solutions Inc	SE2442L	SE2442L-EK1	EVALUATION BOARD SE2442L-R	DigiKey	1	10 units	$105.51	🛒 Buy Now

📥 Download PDF (676.74 KB)

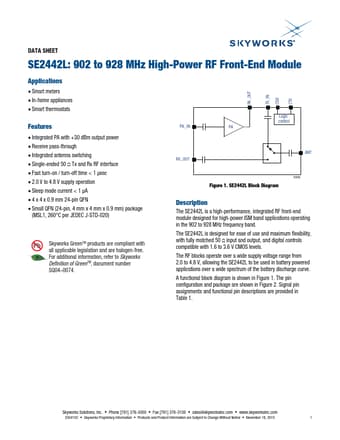

SE2442L Datasheet Preview Page 1 — Preview of SE2442L Datasheet

PDF File Details

Part number:

SE2442L

Manufacturer:

Skyworks

File Size:

676.74 KB

Download:

📄 Download the SE2442L Datasheet PDF

Description:

902 to 928 mhz high-power rf front-end module.
The SE2442L ihigh-performance, integrated RF front-end module designed for high-power ISM band applications operatin.

✔ SE2442L Features

Integrated PA with +30 dBm output power
Receive pass-through
Integrated antenna switching
Single-ended 50 Ω Tx and Rx RF interface
Fast turn-on / turn-off time

✔ SE2442L Application

Smart meters
In-home appliances
Smart thermostats Features
Integrated PA with +30 dBm output power
