SE2435L Datasheet - Skyworks

High-Power RF Front-End Module

SE2435L Features

* Integrated PA with +30 dBm output power

* Integrated LNA with programmable bypass

* Integrated antenna switching with transmit/receive diversity function

* Low FEM noise figure of 2 dB, typical

* Single-ended 50  transmit/receive RF interface

* Fast turn-on/turn-off time:

SE2435L General Description

The SE2435L is a high-performance, highly integrated RF front-end module designed for high-power Industrial, Scientific, Medical (ISM) band applications operating in the 860 to 930 MHz frequency range. The SE2435L is designed for ease of use and maximum flexibility with fully matched 50  TX and RX .

SE2435L Datasheet (1.70 MB)

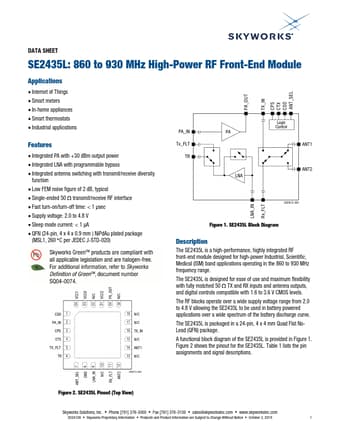

SE2435L Datasheet Preview — Preview of SE2435L PDF

Datasheet Details

Part number:

SE2435L

Manufacturer:

Skyworks

File Size:

1.70 MB

Description:

High-power rf front-end module.
DATA SHEET SE2435L: 860 to 930 MHz High-Power RF Front-End Module Applications Internet of Things Smart meters In-home appliances
