AD6C101 Datasheet, Relay, Solid State Optronic

AD6C101 Features

  • Relay APPLICATIONS
  • High Blocking Voltage (600V) High Input-Output Isolation (3750V) 120mA MAX Continuous Load Current On Resistance 40 ohm

PDF File Details

Part number:

AD6C101

Manufacturer:

Solid State Optronic

File Size:

230.73kb

Download:

📄 Datasheet

Description:

1 form a solid state relay. The AD6C101 is a bi-directional, single-pole, single-throw, normally open multipurpose solid-state relay. With a high blocking voltag

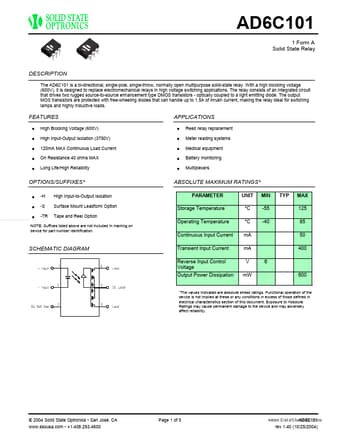

Datasheet Preview: AD6C101 📥 Download PDF (230.73kb)
Page 2 of AD6C101 Page 3 of AD6C101

AD6C101 Application

  • Applications The relay consists of an integrated circuit that drives two rugged source-to-source enhancement type DMOS transistors - optically coup
