AD6C311-L

MOSFET Output Solid State Relay

AD6C311-L Features

* High Isolation Voltage (3750VRMS)

* Low Input Control Current (2.5mA TYP)

* 200mA Maximum Continuous Load Current

* 15 Maximum On-Resistance

* Active Current Limiting Protection

* Long Life / High Reliability

* RoHS / Pb-Free / REACH Compliant Agency Approvals UL / C

AD6C311-L General Description

The AD6C311-L is a bi-directional, single-pole, singlethrow, normally open solid-state relay. It provides a load current of 200mA, a high blocking voltage of 400V, and current limiting circuitry in a compact 6 pin DIP package. Current limiting circuitry provides a level of protection against increas.

AD6C311-L Datasheet (306.42 KB)

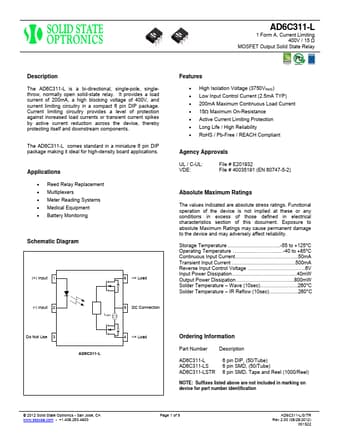

Preview of AD6C311-L PDF

Datasheet Details

Part number:

AD6C311-L

Manufacturer:

Solid State Optronic

File Size:

306.42 KB

Description:

Mosfet output solid state relay.
