AD6C941 Datasheet, Relay, Solid State Optronics

AD6C941 Features

  • Relay
  • Low On Resistance (75m TYP)
  • Low Input Control Current (1mA TYP)
  • High Maximum Continuous Load Current (2.2 Amps)
  • High Isolation Voltage (3.75kVRM

PDF File Details

Part number:

AD6C941

Manufacturer:

Solid State Optronics

File Size:

345.53kb

Download:

📄 Datasheet

Description:

Relay. The AD6C941 is a bi-directional, single-pole, single-throw, normally open multipurpose relay. It is designed to replace electro-mecha

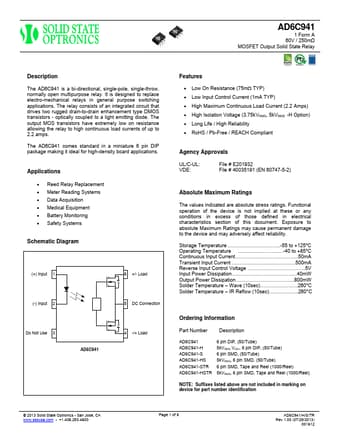

Datasheet Preview: AD6C941 📥 Download PDF (345.53kb)
Page 2 of AD6C941 Page 3 of AD6C941

AD6C941 Application

  • Applications The relay consists of an integrated circuit that drives two rugged drain-to-drain enhancement type DMOS transistors - optically couple
