SMA4115

Solid State Relay

SMA4115 Features

* Low On Resistance (75m MAX)

* High Continuous Load Current (3.4A)

* Low Input Control Power Consumption (2mA TYP)

* High Input-to-Output Isolation (up to 5kV MIN)

* Long Life / High Reliability

* RoHS / Pb-Free / REACH Compliant Agency Approvals UL/C-UL: VDE: File # E20

SMA4115 General Description

The SMA4115 is a DC, single-pole, single-throw, normally open solid-state relay in a 4 pin single inline package. The relay consists of an AlGaAs LED, optically coupled to a high performance Photo Diode Array (PDA), which in turn drives one low on-resistance, rugged source-to-source enhancement type.

SMA4115 Datasheet (198.22 KB)

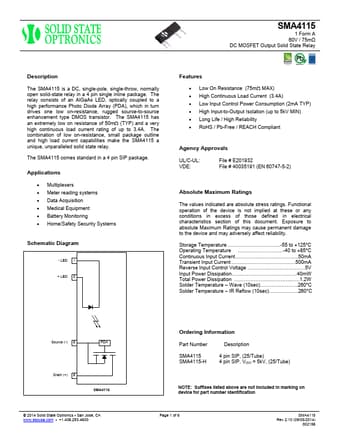

Preview of SMA4115 PDF

Datasheet Details

Part number:

SMA4115

Manufacturer:

Solid State Optronic

File Size:

198.22 KB

Description:

Solid state relay.
