SMA411 Datasheet - Tyco Electronics

SMA411 10 TO 400 MHz CASCADABLE AMPLIFIER

A411/SMA411 10 TO 400 MHz CASCADABLE AMPLIFIER LOW NOISE FIGURE: 3.0 dB (TYP.) HIGH EFFICIENCY: 16 mA at +5 Vdc HIGH THIRD ORDER I.P.: +29 dBm at +8 Vdc (TYP.) MEDIUM OUTPUT LEVEL: +14.5 dBm at +8 Vdc (TYP.) Specifications (Rev. Date: 6/01) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 5 Volts (max.).

SMA411_TycoElectronics.pdf

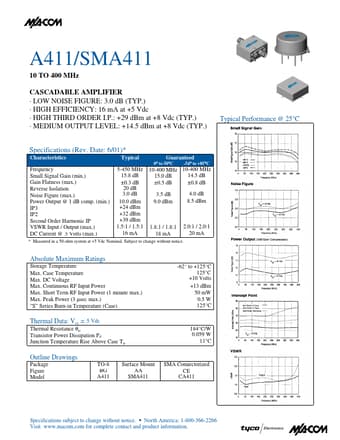

Preview of SMA411 PDF

Datasheet Details

Part number:

SMA411

Manufacturer:

Tyco Electronics

File Size:

112.24 KB

Description:

10 to 400 mhz cascadable amplifier.
