SMA4011 Datasheet - Tyco Electronics

SMA4011 1000 TO 4000 MHz TO-8 CASCADABLE AMPLIFIER

A4011/SMA4011 1000 TO 4000 MHz TO-8 CASCADABLE AMPLIFIER LOW NOISE FIGURE: 2.0 dB (TYP.) MEDIUM OUTPUT POWER: +18.3 dBm (TYP.) HIGH EFFICIENCY: 65 mA (TYP.) @ +5 Vdc PHEMT AMPLIFIER Specifications (Rev. Date: 6/01) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 5 Volts (max.) Typical 0° to 50°C Typic.

SMA4011_TycoElectronics.pdf

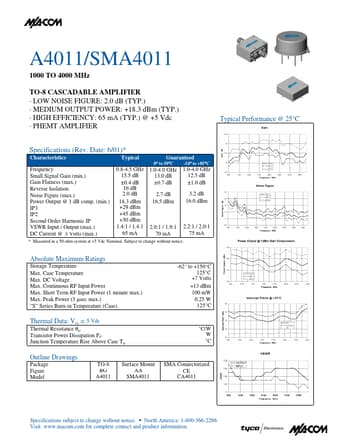

Preview of SMA4011 PDF

Datasheet Details

Part number:

SMA4011

Manufacturer:

Tyco Electronics

File Size:

105.62 KB

Description:

1000 to 4000 mhz to-8 cascadable amplifier.
