CXA1897Q, Dolby B Type Noise Reduction System with Recording/Playback Equalizer

CXA1897Q Dolby B Type Noise Reduction System with Recording/Playback Equalizer .
The CXA1897Q is an analog signal processing IC for tape recorders.

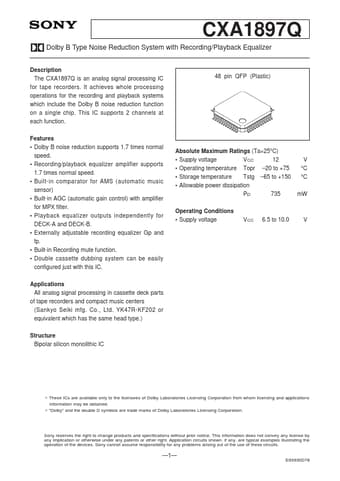

datasheet Preview Page 1 from Datasheet4u.com

CXA1897Q_SonyCorporation.pdf

CXA1897Q Datasheet Preview — Preview of CXA1897Q PDF

Datasheet Details

Part number:

CXA1897Q

Manufacturer:

Sony Corporation

File Size:

396.77 KB

Description:

Dolby B Type Noise Reduction System with Recording/Playback Equalizer

Features

* Dolby B noise reduction supports 1.7 times normal speed.
* Recording/playback equalizer amplifier supports 1.7 times normal speed.
* Built-in comparator for AMS (automatic music sensor)
* Built-in AGC (automatic gain control) with amplifier for MPX filter.

Applications

* All analog signal processing in cassette deck parts of tape recorders and compact music centers (Sankyo Seiki mfg. Co. , Ltd. YK47R-KF202 or equivalent which has the same head type. ) Structure Bipolar silicon monolithic IC 48 pin QFP (Plastic) Absolute Maximum Ratings (Ta=25°C)
* Supply volt
