CXA1898Q, Recording/Playback Equalizer Amplifier

CXA1898Q Recording/Playback Equalizer Amplifier .
The CXA1898Q is an IC developed for analog signal processing in tape recorders.

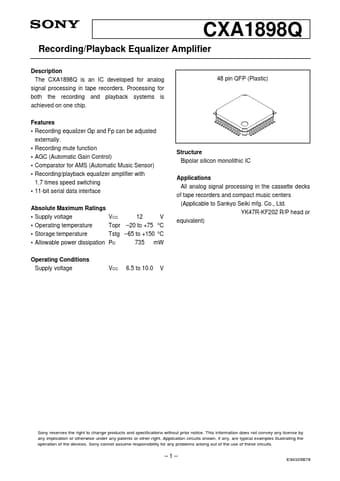

datasheet Preview Page 1 from Datasheet4u.com

CXA1898Q_SonyCorporation.pdf

CXA1898Q Datasheet Preview — Preview of CXA1898Q PDF

Datasheet Details

Part number:

CXA1898Q

Manufacturer:

Sony Corporation

File Size:

660.40 KB

Description:

Recording/Playback Equalizer Amplifier

Features

* Recording equalizer Gp and Fp can be adjusted externally.
* Recording mute function
* AGC (Automatic Gain Control)
* Comparator for AMS (Automatic Music Sensor)
* Recording/playback equalizer amplifier with 1.7 times speed switching
* 11-bit serial d

Applications

* All analog signal processing in the cassette decks of tape recorders and compact music centers (Applicable to Sankyo Seiki mfg. Co. , Ltd. YK47R-KF202 R/P head or equivalent) VCC 12 V Topr
* 20 to +75 °C Tstg
* 65 to +150 °C PD 735 mW VCC 6.5 to 10.0 V Sony reserves the right to ch
