CXA1915AN Datasheet, Minidisc, Sony Corporation

CXA1915AN Features

  • Minidisc low output impedance for stable output.
  • Focus servo: astigmatic method
  • Tracking servo: three-spot method
  • Magneto optical signal (RF signal) detection: Woll

PDF File Details

Part number:

CXA1915AN

Manufacturer:

Sony Corporation

File Size:

108.24kb

Download:

📄 Datasheet

Description:

I-v photo ic for minidisc. The CXA1915AN is a photo IC developed as a photo detector for the optical pickup of MiniDisc. The photodiode for RF signal detection

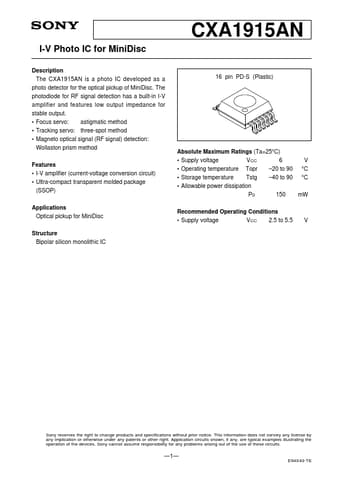

Datasheet Preview: CXA1915AN 📥 Download PDF (108.24kb)
Page 2 of CXA1915AN Page 3 of CXA1915AN

CXA1915AN Application

  • Applications Optical pickup for MiniDisc Structure Bipolar silicon monolithic IC 16 pin PD-S (Plastic) Absolute Maximum Ratings (Ta=25°C)
