CXA1917AS - Dolby S type Noise Reduction Processor

Sony Corporation

📥 Download Datasheet

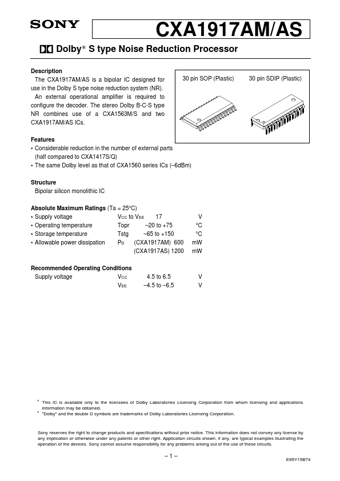

CXA1917AS Datasheet Preview — Preview of CXA1917AS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXA1917AS
Manufacturer: Sony Corporation
File Size: 396.05 KB
Datasheet: CXA1917AS_SonyCorporation.pdf
Description: Dolby S type Noise Reduction Processor

CXA1917AS Product details

Description

The CXA1917AM/AS is a bipolar IC designed for use in the Dolby S type noise reduction system (NR).

Features

Considerable reduction in the number of external parts (half compared to CXA1417S/Q).
The same Dolby level as that of CXA1560 series ICs (.
6dBm) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C).
Supply voltage VCC to VEE 17.
Operating temperature Topr.
20 to +75.
Storage temperature Tstg.
65 to +150.
Allowable power dissipation PD (CXA1917AM) 600 (CXA1917AS) 1200 Recommended Operating Condi.
