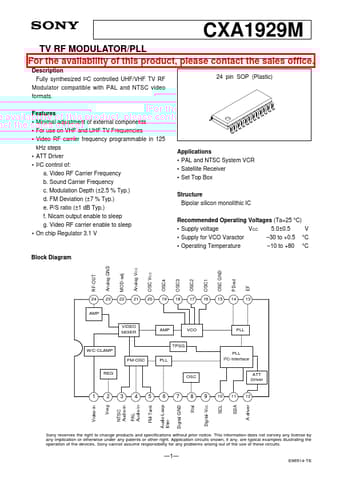

CXA1929M Datasheet Preview — Preview of CXA1929M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXA1929M
Manufacturer: Sony Corporation
File Size: 326.10 KB
Datasheet: CXA1929M_SonyCorporation.pdf
Description: TV RF MODULATOR/PLL

CXA1929M Product details

Description

Fully synthesized I2C controlled UHF/VHF TV RF Modulator compatible with PAL and NTSC video formats.

Features

Minimal adjustment of external components.
For use on VHF and UHF TV Frequencies.
Video RF carrier frequency programmable in 125 kHz steps.
ATT Driver.
I2C control of: a. Video RF Carrier Frequency b. Sound Carrier Frequency c. Modulation Depth (±2.5 % Typ. ) d. FM Deviation (±7 % Typ. ) e. P/S ratio (±1 dB Typ. ) f. Nicam output enable to sleep g. Video RF carrier enable to sleep.
On chip Regulator 3.1 V 24 pin SOP (Plastic).
