CXA1917AM

Dolby S type Noise Reduction Processor

Sony Corporation

CXA1917AM Features

* Considerable reduction in the number of external parts (half compared to CXA1417S/Q)

* The same Dolby level as that of CXA1560 series ICs (

* 6dBm) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C)

* Supply voltage VCC to VEE 17

* Op

CXA1917AM General Description

The CXA1917AM/AS is a bipolar IC designed for use in the Dolby S type noise reduction system (NR). An external operational amplifier is required to configure the decoder. The stereo Dolby B-C-S type NR combines use of a CXA1563M/S and two CXA1917AM/AS ICs. 30 pin SOP (Plastic) 30 pin SDIP (Plastic) .

CXA1917AM Datasheet (396.05 KB)

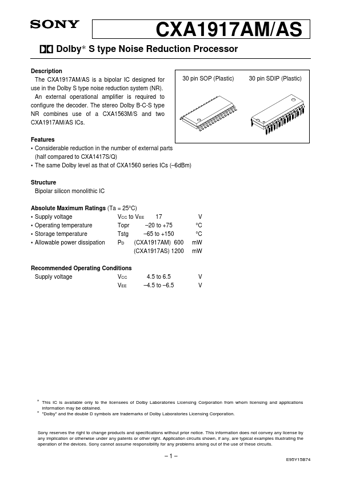

CXA1917AM Datasheet Preview — Preview of CXA1917AM PDF

Datasheet Details

Part number:

CXA1917AM

Manufacturer:

Sony Corporation

File Size:

396.05 KB

Description:

Dolby s type noise reduction processor.
