CXA2022S I2C Bus Sound Processor for TV

CXA2022S Description

CXA2022S I2C Bus Sound Processor for TV .
The CXA2022S is a bipolar IC designed as an I2C bus control sound processor for TV.

CXA2022S Features

* Allows control by I2C bus
* Employs a special surround system to prevent "vocal missing" in the surround mode
* Adopts an AGC circuit to absorb the difference in sound level between input sources and improves S/N ratio of hearing characteristics Absolute Maximum Ratings

CXA2022S Applications

* TVs VCC 14 Topr
* 20 to +75 Tstg
* 65 to +150 PD 1.25 V °C °C W Recommended Operating Condition Supply voltage 8 to 13 V Pin Configuration MVFO LOUT PS3B PS3A PS2B PS2A MVFI VRS PS1B DET1 16 15 L IN VCC CL L CH L CC L 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1

📥 Download Datasheet

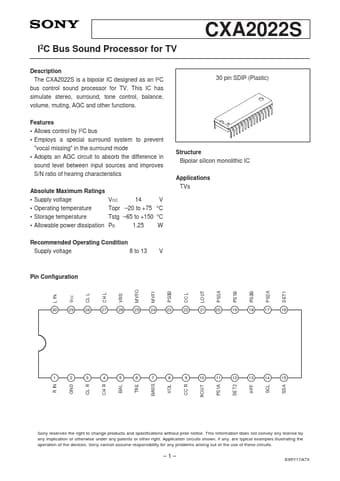

Preview of CXA2022S PDF
