CXA2027Q Datasheet - Sony Corporation

Analog signal processor IC

CXA2027Q Features

* Sample-and-hold circuit

* Pixel-clamp and line-clamp circuit

* Multiplex circuit

* ADC driver circuit

* Gain control amplifier circuit

* Offset control circuit

* Clock frequency: 1.5 to 6MHz (after multiplex) Applications Color image scanner

CXA2027Q General Description

The CXA2027Q is an analog signal processor for CCD linear image sensor output signal. This device is suitable for 3 lines of full-color CCD linear image sensor (ILX516K/ILX518K/ILX520K: 3648 pixels × 3 lines/5363 pixels × 3 lines/7078 pixels × 3 lines). This device has a built-in sample-and-hold, cl.

CXA2027Q Datasheet (287.54 KB)

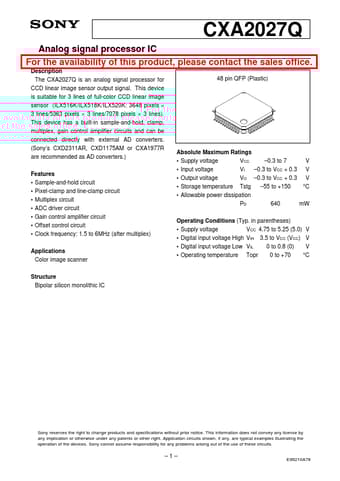

CXA2027Q Datasheet Preview — Preview of CXA2027Q PDF

Datasheet Details

Part number:

CXA2027Q

Manufacturer:

Sony Corporation

File Size:

287.54 KB

Description:

Analog signal processor ic.
