CXA2108AQ Datasheet, Display, Sony Corporation

CXA2108AQ Features

  • Display
  • 24 outputs: 10-bit (1,024-gradation) PWM current outputs
  • Maximum output current: 70mA
  • LED type: Common anode
  • 4-bit brightness function capable of

PDF File Details

Part number:

CXA2108AQ

Manufacturer:

Sony Corporation

File Size:

282.80kb

Download:

📄 Datasheet

Description:

Constant-current driver for full color led display. The CXA2108AQ is a 1,024-gradation LED driver which is ideal for full color LED displays. This IC has 24 outputs and a maximum output

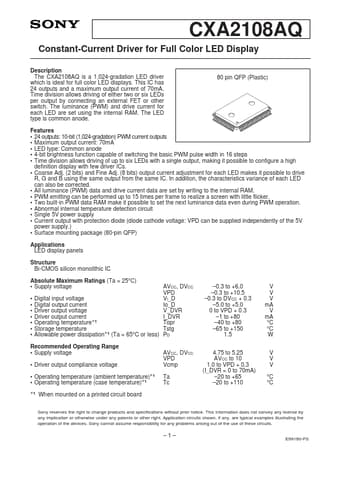

Datasheet Preview: CXA2108AQ 📥 Download PDF (282.80kb)
Page 2 of CXA2108AQ Page 3 of CXA2108AQ

CXA2108AQ Application

  • Applications LED display panels Structure Bi-CMOS silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C)
  • Supply voltage
