CXA2111R

LCD Signal Processor (Gamma Correction)

CXA2111R Features

* Independent R, G and B gamma adjustment

* Three-point gamma gain and position adjustment (one white side point, two black side points)

* Independent R, G and B output amplifier gain and bias adjustment

* Various I2C bus-based controls and adjustment of various chara

CXA2111R General Description

The CXA2111R is a signal processor IC developed for LCD panels. Gamma correction, gain and bias, etc., can be adjusted using the I2C bus and external adjustment pins. The output of this IC is ideal as the input of the CXA2112R (LCD sample-and-hold driver IC), and the sample-and-hold position, etc., .

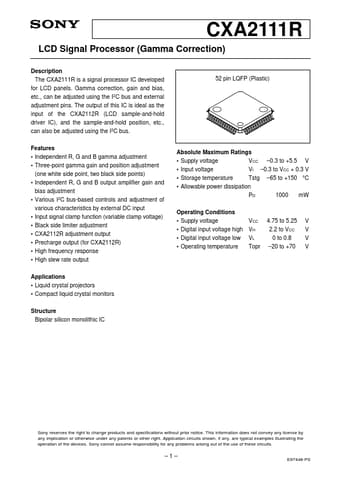

CXA2111R Datasheet (357.33 KB)

Preview of CXA2111R PDF

Datasheet Details

Part number:

CXA2111R

Manufacturer:

Sony Corporation

File Size:

357.33 KB

Description:

Lcd signal processor (gamma correction).
