CXA2108Q - Constant-Current Driver for Full Color LED Display

Product Overview

Sony Corporation

📥 Download Datasheet

CXA2108Q Constant-Current Driver for Full Color LED Display by Sony Corporation - Datasheet Preview — Datasheet preview – CXA2108Q

Datasheet Details

Part number	CXA2108Q
Manufacturer	Sony Corporation
File Size	288.53 KB
Description	Constant-Current Driver for Full Color LED Display
Datasheet	CXA2108Q Datasheet
Additional preview pages of the CXA2108Q datasheet.

Product details

Description

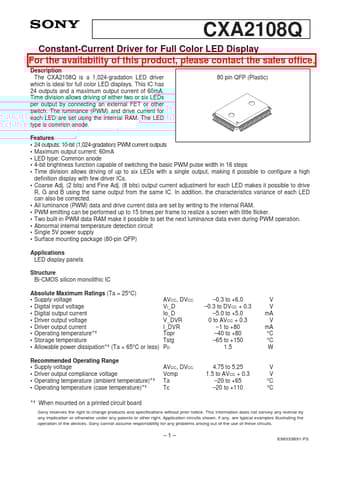

The CXA2108Q is a 1,024-gradation LED driver which is ideal for full color LED displays.

Features

24 outputs: 10-bit (1,024-gradation) PWM current outputs.
Maximum output current: 60mA.
LED type: Common anode.
4-bit brightness function capable of switching the basic PWM pulse width in 16 steps.
Time division allows driving of up to six LEDs with a single output, making it possible to configure a high definition display with few driver ICs.
Coarse Adj. (2 bits) and Fine Adj. (8 bits) output current adjustment for each LED makes it possib.
