CXA2104S Datasheet - Sony Corporation

CXA2104S, US Audio Multiplexing Decoder

CXA2104S US Audio Multiplexing Decoder .
The CXA2104S is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C BUS.

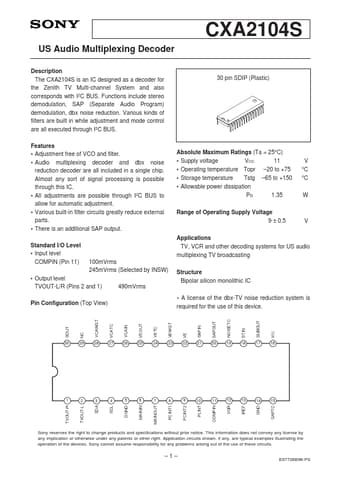

datasheet Preview Page 1 from Datasheet4u.com

CXA2104S_SonyCorporation.pdf

CXA2104S Datasheet Preview — Preview of CXA2104S PDF

Datasheet Details

Part number:

CXA2104S

Manufacturer:

Sony Corporation

File Size:

331.02 KB

Description:

US Audio Multiplexing Decoder

Features

* Adjustment free of VCO and filter.
* Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is possible through this IC.
* All adjustments are possible through I2C BUS to allow for automatic adjustm

Applications

* TV, VCR and other decoding systems for US audio multiplexing TV broadcasting 100mVrms 245mVrms (Selected by INSW) 490mVrms ∗ A license of the dbx-TV noise reduction system is required for the use of this device. NOISETC SAPOUT VCATC VEOUT VEWGT SUBOUT
* Output level TVOUT-L/R (Pins 2 and 1)
