CXD3027R Datasheet - Sony Corporation

CXD3027R, CD Digital Signal Processor with Built-in Digital Servo + Shock-Proof Memory Controller + Digital High & Bass Boost

CXD3027R CD Digital Signal Processor with Built-in Digital Servo + Shock-Proof Memory Controller + Digital High & Bass Boost .
The CXD3027R is a digital signal processor LSI for CD players.

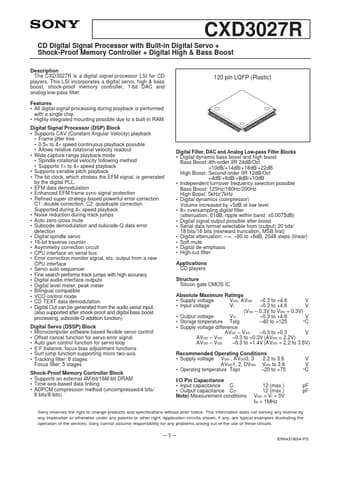

datasheet Preview Page 1 from Datasheet4u.com

CXD3027R_SonyCorporation.pdf

CXD3027R Datasheet Preview — Preview of CXD3027R PDF

Datasheet Details

Part number:

CXD3027R

Manufacturer:

Sony Corporation

File Size:

1.83 MB

Description:

CD Digital Signal Processor with Built-in Digital Servo + Shock-Proof Memory Controller + Digital High & Bass Boost

Features

* All digital signal processing during playback is performed with a single chip
* Highly integrated mounting possible due to a built-in RAM Digital Signal Processor (DSP) Block
* Supports CAV (Constant Angular Velocity) playback
* Frame jitter free
* 0.5× to 4

Applications

* CD players Structure Silicon gate CMOS IC Absolute Maximum Ratings
* Supply voltage VDD, AVDD
* 0.3 to +4.6 V
* Input voltage VI
* 0.3 to +4.6 V (VSS
* 0.3V to VDD + 0.3V)
* Output voltage VO
* 0.3 to +4.6 V
* Storage temperature Tstg
