CXM3512EQ Datasheet - Sony Corporation

SP9T GSM/UMTS Dual Mode Antenna Switch

CXM3512EQ Features

* Low insertion loss 0.80dB (typ.) on TX1 (915MHz) 0.95dB (typ.) on TX2 (1910MHz) 0.65dB (typ.) on RX (960MHz) 0.65dB (typ.) on TRx (1980MHz) Built-in dual-LPF Att

* 30dB (typ.) @2fo (Tx1 path) Att

* 30dB (typ.) @2fo (Tx2 path) TRXs and RXs paths are changeable for band assignment

CXM3512EQ General Description

The CXM3512EQ is one of a range of low insertion loss, high linearity, low IMD and high power MMIC antenna switch modules for GSM/UMTS or CDMA dual-mode handsets. The Sony L.F.M. * contains SP9T switch die, CMOS decoder and a dual-LPF on GSM transmit paths for suppression of transmitter harmonics.

CXM3512EQ Datasheet (272.27 KB)

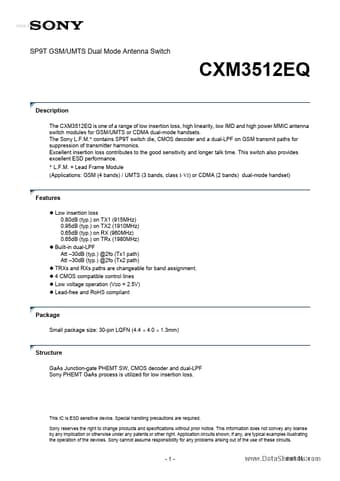

CXM3512EQ Datasheet Preview — Preview of CXM3512EQ PDF

Datasheet Details

Part number:

CXM3512EQ

Manufacturer:

Sony Corporation

File Size:

272.27 KB

Description:

Sp9t gsm/umts dual mode antenna switch.
