CXM3517BER Datasheet - Sony

SP7T Antenna Switch Module

CXM3517BER Features

* ‹ Low insertion loss: 0.80dB (Typ.) on Tx1 (GSM Low Band Tx) 0.80dB (Typ.) on Tx2 (GSM High Band Tx) 0.33dB (Typ.) on TRx (UMTS Band I) ‹ High attenuation: 30dB (Typ.) Tx1 @ 2nd Harmonic freq. 30dB (Typ.) Tx2 @ 2nd Harmonic freq. ‹ No DC blocking capacitors (Small device footprint) Small package: V

CXM3517BER General Description

This switch is one of a range of low insertion loss, good linearity and high power MMIC antenna switch modules for GSM/UMTS or CDMA dual-mode handsets. The Sony A.S.M. contains SP7T switch, a 1.8V CMOS decoder and a dual-LPF on GSM transmit paths. The Sony GaAs junction gate pHEMT (JPHEMT) process i.

CXM3517BER Datasheet (247.63 KB)

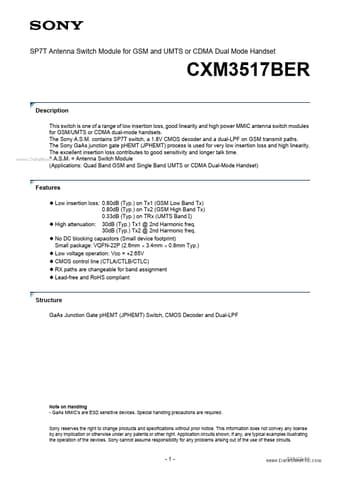

Preview of CXM3517BER PDF

Datasheet Details

Part number:

CXM3517BER

Manufacturer:

Sony

File Size:

247.63 KB

Description:

Sp7t antenna switch module.
