CXM3582UR - SP10T Antenna Switch Module 6TRx/2Tx/2Rx

The CXM3582UR is a SP10T antenna switch module for GSM/UMTS/CDMA/LTE multi-mode handset.

The CXM3582UR has a built-in dual low pass filter and a +1.8 V CMOS compatible decoder.

The Sony GaAs junction gate pHEMT (JPHEMT) MMIC process is used for low insertion loss and high linearity.

The device has l

CXM3582UR Features

* Low insertion loss: 0.45 dB (Typ.) TRx (Cellular band) 0.60 dB (Typ.) TRx (IMT Tx band)

* High linearity: IIP3 = 68 dBm

* Battery direct operation: VDD = 2.5 V to 5.0 V

* No DC blocking capacitors except sourcing DC bias

* Small package size: 26-pin UQFN (2.6 mm x 3.4 mm x 0.6

CXM3582UR_SonyElectronics.pdf

Preview of CXM3582UR PDF

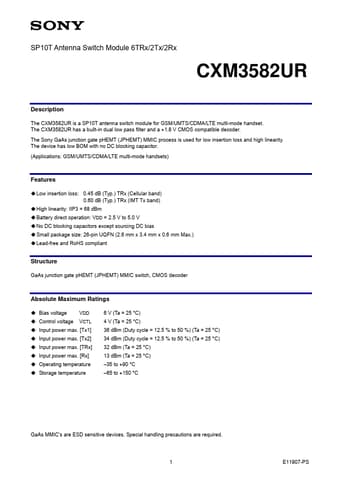

CXM3582UR Datasheet Preview Page 2 CXM3582UR Datasheet Preview Page 3
