CXM3569XR Datasheet, Switch, Sony

CXM3569XR Features

  • Switch
  • Low Insertion Loss: 0.31 dB typical (Cellular / GSM Low Band) 0.41 dB typical (PCS / GSM High Band) 0.46 dB typical (IMT2000) IIP3=70 dBm XQFN-20P (2.5 mm × 2.5 mm × 0.35 mm T

PDF File Details

Part number:

CXM3569XR

Manufacturer:

Sony

File Size:

770.20kb

Download:

📄 Datasheet

Description:

Sp4t antenna switch. The CXM3569XR is a high power SP4T antenna switch for GSM / CDMA / UMTS applications. The antenna port can be routed to either of the

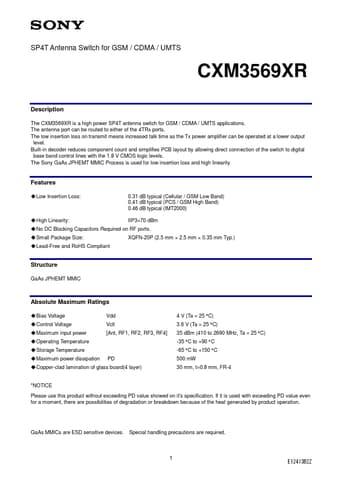

Datasheet Preview: CXM3569XR 📥 Download PDF (770.20kb)
Page 2 of CXM3569XR Page 3 of CXM3569XR

CXM3569XR Application

  • Applications The antenna port can be routed to either of the 4TRx ports. The low insertion loss on transmit means increased talk time as the Tx pow
