ICX058AK

1/3-inch CCD Image Sensor

ICX058AK Features

* a field period readout system and an electronic shutter with variable charge-storage time. Features

* High resolution, high sensitivity and low dark current

* Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s

* Low smear

* Excellent antiblooming chara

ICX058AK General Description

The ICX058AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters. At the same time, high sensitivity and low dark current are achieved through the adoption of HAD (HoleA.

ICX058AK Datasheet (282.78 KB)

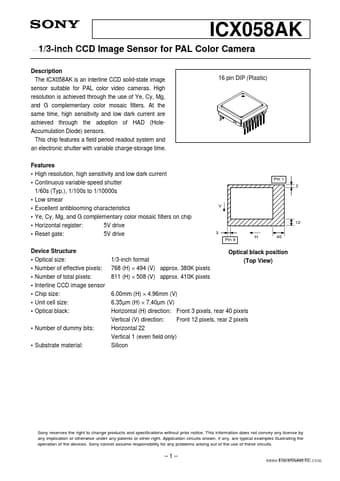

Preview of ICX058AK PDF

Datasheet Details

Part number:

ICX058AK

Manufacturer:

Sony Corporation

File Size:

282.78 KB

Description:

1/3-inch ccd image sensor.
