ICX058CK

Diagonal 6mm (Type 1/3) CCD Image Sensor

ICX058CK Features

* a field period readout system and an electronic shutter with variable charge-storage time. Features

* High sensitivity (+3dB at F5.6, +4dB at F1.2 compared with ICX058AK)

* High resolution, low smear and low dark current

* Excellent antiblooming characteristics

* Cont

ICX058CK General Description

The ICX058CK is an interline CCD solid-state image sensor suitable for NTSC color video cameras. Compared with the current product ICX058AK, sensitivity is improved drastically through the adoption of Super HAD CCD technology. High resolution is achieved through the use of Ye, Cy, Mg, and G compleme.

ICX058CK Datasheet (255.31 KB)

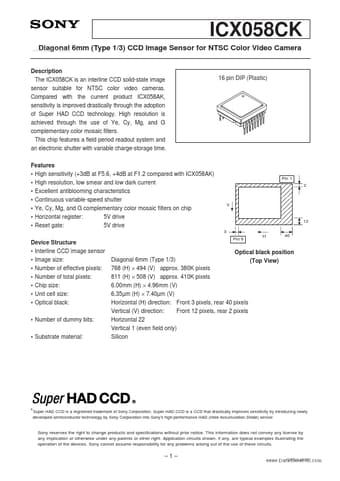

Preview of ICX058CK PDF

Datasheet Details

Part number:

ICX058CK

Manufacturer:

Sony Corporation

File Size:

255.31 KB

Description:

Diagonal 6mm (type 1/3) ccd image sensor.
